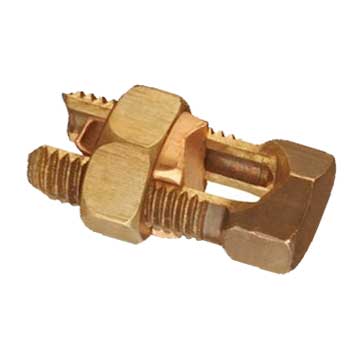

Split Bolt Line Connectors Taps

Split Bolt Line Connectors Taps Split Bolt Line Connectors Taps Split Bolt Line Connectors Taps Split Bolt Line Connectors Taps
Threads for Brass line taps Copper Bronze Brass split Bolts Brass split bolt connectors
brown bullet ISO metric (MM Threads)
brown bullet As per customers requirements
Material for Brass line taps Brass split Bolts Brass split bolt connectors
brown bullet Free Cutting Brass IS 319 Type (I) or
brown bullet Free Cutting Brass As Per BS 249 Type (I) or
brown bullet High Grade Free Cutting Brass
brown bullet Any Special Brass Material Composition As Per Customers Requirement.
Plating
brown bullet Natural, Nickel Plated, Tin Plated or any coating as per customer specification.
Size (mm2) A B CA / F DA / F E
6 19.85 4.00 12.70 13.35 4.80
10 26.75 4.70 12.70 19.00 5.60
16 26.00 5.70 12.70 19.00 5.60
25 28.00 7.30 16.00 19.00 5.60
35 35.00 7.80 18.50 24.00 6.35
50 42.00 9.70 24.10 27.20 8.65
70 44.50 11.20 24.10 27.20 8.65
95 50.00 14.40 26.50 35.40 9.40
120 57.50 16.20 30.00 35.40 12.00
120 57.50 16.20 30.00 35.40 12.00
185 57.50 18.20 31.75 38.00 12.00
240 72.50 22.20 40.00 48.20 14.25
300 72.50 24.00 42.00 50.00 14.25
400 76.50 26.00 48.00 56.00 16.00
500 80.00 30.00 55.00 65.00 16.00
Any Kind of Brass Line Taps Brass split Bolts Brass split bolt connectors bronze, split bolts ,split bolt connectors,  can be developed as per customers specifications from jamnagar india.
